Six Monitors - Two Joint Arm (L: 9.5") and Four Long Arms (L: 26.5) up to 19" Diagonal Monitors

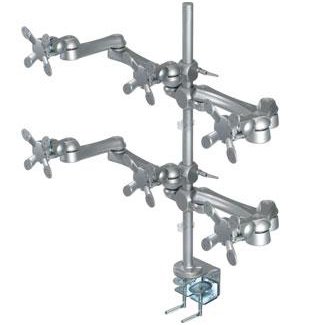

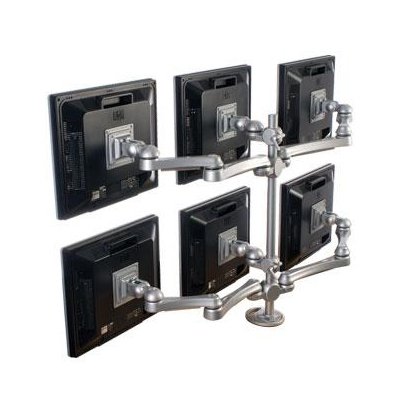

MA-6-C - Six flat panel monitor arm holds six monitors. Extended height pole mount with height adjustable arms. Four long length arms and two joint length arms. Long length arm has five articulation points.

Features:

• Pole mounted monitor arm for six monitors.

• Fits up to 19" diagonal monitors.

• Height adjustable on the pole using supplied Allen key and height adjustment levers.

• Quick connect 75/100 mm VESA mounts.

• Cable organizers under arms and on pole.

• Silver finish.

Benefits:

• Superior adjustability for healthy computing.

• Improve working comfort.

• Optimize desk space.

• Share information for better collaboration.

• Increase productivity with multiple monitors.

MA-3-C

MA-3-G

Construction:

• Arms made from die cast aluminum alloy with 90% recycled material content (10% pre-consumer and 80% post-consumer).

• Mounts made from steel with 90% recycled material content (10% preconsumer and 80% post-consumer).

• Powder coat finish.

Screen Mounting:

• Quick connect mount provides speed and convenience when attaching or removing monitors.

• To attach a monitor, remove Quick connect mount from the arm, and mount it to the monitor using the screws provided. With the monitor attached, simply re-install the Quick connect mount on the arm.

• Quick connect mounts are interchangeable between MA5000 and MA2000 arms.

• Adapter plate for 200mm x100mm VESA hole pattern available.

Application Notes:

• VESA mount rotates 270º for portrait or landscape monitor viewing.

• VESA mount tilts upwards 180º and downwards 180º for monitor angle adjustment

• Long arm configuration can fold to 6” to save space

• Arms are touch-screen compatible.

• All mounts must be securely attached to worksurfaces, walls etc... ISE is not responsible for improperly installed arms

MA2000 Monitor Arm Components:

Desk Mounts:

Clamp Mount

• Standard Clamp (MA2000-201B), Large Clamp (MA2000-901AA) and Deep Clamp (C1).

• Standard clamp mount fits surfaces up to 2.75" thick.

• Clamp is two-piece, front-fastening to simplify installation in an existing workstation (requires 1/4" clearance between desk and panel or wall for surfaces up to 1.5" thick, 1/2" clearance for surfaces 1.5"-2.75").

• Turn-handle allows clamp repositioning without tools.

• Mounts pole to desk

• Use Standard Clamp with Standard Pole, Large Clamp with Large Pole

• Silver finish

• Large clamp is used on models using Large (28") Pole.

• Deep clamp C1 designed for radius underside surfaces.

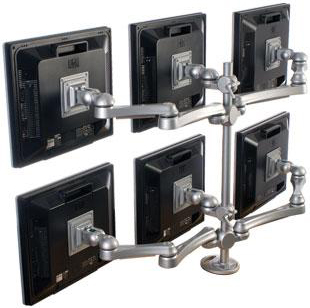

• Grommet mount fits surfaces up to 1.5” thick. Fastens together using bolt and 3.75” long clamping bar. Grommet base will cover hole up to 2.5” diameter.
• Mounts pole to desk
• Use with Standard Pole or Large Pole
• Silver finish

Poles:

Large Pole - MA2000-501B

• 28" height, 1-1/8" diameter.

• Mounts to Large Clamp or Grommet.

• Includes cable management clips.

• Poles include decorative base cover, pole clips, pole cap Extensions include one set of connecting hardware with cable manager.

• Silver finish

Connectors:

Single Connector - MA2000-514

• Use when mounting one monitor.

• Slide connector onto pole.

• Height adjustment lever.

• Silver finish

Dual Connector - MA2000-515

• Use when mounting two monitors.

• Slide connector onto pole.

• Height adjustable using supplied Allen key.

• Silver finish

Extension Arms:

Short Extension - MA2000-512

• Attach to connector or use use with another extension.

• Maximum two extensions per arm.

• Silver finish.

Large Extension - MA2000-513

• Attach to connector or use use with another extension.

• Maximum two extensions per arm.

• Silver finish.

Monitor Mount:

VESA Mount - MA2000-511Q

• Quick connect 75/100 mm VESA mount.

• Attach VESA mount to extension or to connector.

• Silver finish.

Vertical Slider:

Vertical Slider - MA2000-SLIDER

• Allows user to raise or lower the monitor over 7" height range

• Easy manual adjustment

• Mounts between the monitor and the arm.

• Accommodates monitor weight of 8.8 lbs - 13.2 lbs.

• 75 mm VESA mount (if using 100x100 mm adapter plate reduce load capacity by 1.1 lbs)

• Silver finish.

• Mounts on MA2000 monitor arms only.
