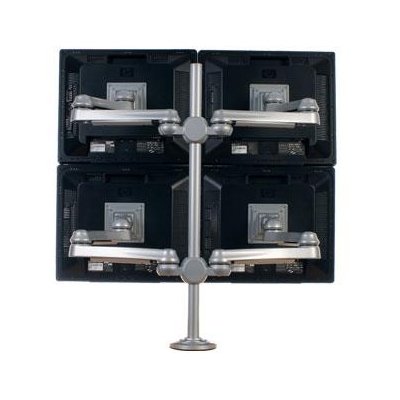

Four Monitors - Long Arm (Length: 26.5") Pole Height (28") up to 27" Diagonal Monitors

MA-4-C - Quad flat panel monitor arm holds four monitors. Extended height pole mount with height adjustable arms. Long length arms. Each arm has five articulation points.

Features:

• Pole mount monitor arm for four monitors.

• Fits up to 27" diagonal monitors.

• Height adjustable on the pole using supplied Allen key.

• Quick connect 75/100 mm VESA mounts.

• Cable organizers under arms and on pole.

• Silver finish.

Benefits:

• Superior adjustability for healthy computing.

• Improve working comfort.

• Optimize desk space.

• Share information for better collaboration.

• Increase productivity with multiple monitors.

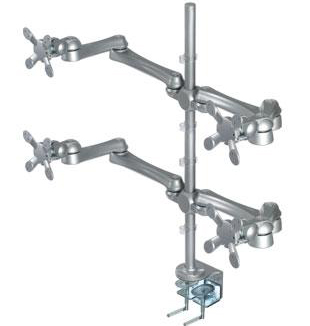

MA-4-C

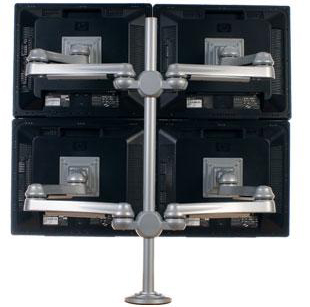

MA-4-G

Construction:

• Arms made from die cast aluminum alloy with 90% recycled material content (10% pre-consumer and 80% post-consumer).

• Mounts made from steel with 90% recycled material content (10% preconsumer and 80% post-consumer).

• Powder coat finish.

Screen Mounting:

• Quick connect mount provides speed and convenience when attaching or removing monitors.

• To attach a monitor, remove Quick connect mount from the arm, and mount it to the monitor using the screws provided. With the monitor attached, simply re-install the Quick connect mount on the arm.

• Quick connect mounts are interchangeable between MA5000 and MA2000 arms.

• Adapter plate for 200mm x100mm VESA hole pattern available.

Application Notes:

• VESA mount rotates 270º for portrait or landscape monitor viewing.

• VESA mount tilts upwards 180º and downwards 180º for monitor angle adjustment

• Long arm configuration can fold to 6” to save space

• Arms are touch-screen compatible.

• All mounts must be securely attached to worksurfaces, walls etc... ISE is not responsible for improperly installed arms

MA2000 Monitor Arm Components:

Desk Mounts:

Clamp Mount

• Standard Clamp (MA2000-201B), Large Clamp (MA2000-901AA) and Deep Clamp (C1).

• Standard clamp mount fits surfaces up to 2.75" thick.

• Clamp is two-piece, front-fastening to simplify installation in an existing workstation (requires 1/4" clearance between desk and panel or wall for surfaces up to 1.5" thick, 1/2" clearance for surfaces 1.5"-2.75").

• Turn-handle allows clamp repositioning without tools.

• Mounts pole to desk

• Use Standard Clamp with Standard Pole, Large Clamp with Large Pole

• Silver finish

• Large clamp is used on models using Large (28") Pole.

• Deep clamp C1 designed for radius underside surfaces.

• Grommet mount fits surfaces up to 1.5” thick. Fastens together using bolt and 3.75” long clamping bar. Grommet base will cover hole up to 2.5” diameter.
• Mounts pole to desk
• Use with Standard Pole or Large Pole
• Silver finish

Poles:

Large Pole - MA2000-501B

• 28" height, 1-1/8" diameter.

• Mounts to Large Clamp or Grommet.

• Includes cable management clips.

• Poles include decorative base cover, pole clips, pole cap Extensions include one set of connecting hardware with cable manager.

• Silver finish

Connectors:

Dual Connector - MA2000-515

• Use when mounting two monitors.

• Slide connector onto pole.

• Height adjustable using supplied Allen key.

• Silver finish

Extension Arms:

Short Extension - MA2000-512

• Attach to connector or use use with another extension.

• Maximum two extensions per arm.

• Silver finish.

Large Extension - MA2000-513

• Attach to connector or use use with another extension.

• Maximum two extensions per arm.

• Silver finish.

Monitor Mount:

VESA Mount - MA2000-511Q

• Quick connect 75/100 mm VESA mount.

• Attach VESA mount to extension or to connector.

• Silver finish.

Vertical Slider:

Vertical Slider - MA2000-SLIDER

• Allows user to raise or lower the monitor over 7" height range

• Easy manual adjustment

• Mounts between the monitor and the arm.

• Accommodates monitor weight of 8.8 lbs - 13.2 lbs.

• 75 mm VESA mount (if using 100x100 mm adapter plate reduce load capacity by 1.1 lbs)

• Silver finish.

• Mounts on MA2000 monitor arms only.

Literature (Please open the following documents for more technical information)

ISE MA-4-C Quad Monitor Clamp Mount Long Arms - Installation Assembly

- pdf
